Wagner Tuning Honda Civic Type R FK8 Competition Intercooler Kit

The WAGNERTUNING high-performance intercooler for the 2017-2019 Honda Civic Type R has got a new competition core which was developed especially for the requirements of the Honda Civic Type R FK8. This high-performance core offers an 91 % larger frontal surface and 140 % more core volume compared to the stock intercooler.

• The aluminum cast endtanks were designed in CAD and optimized in CFD simulations (for an ideal internal airflow)
• Incorporated air baffle inside the intercooler inlet ensure a uniform filling of the intercooler
• A excellent cooling property with a minimal back pressure
• The competition high-performance core is very light and provides the adjoining components enough air flow by using a specially prepared air baffle
• Perfect for racing use
• An optimal cooling effect of the charged air with a significant increase in performance
• Anti-corrosion powder coating with perfect heat-conducting properties protects the intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed.

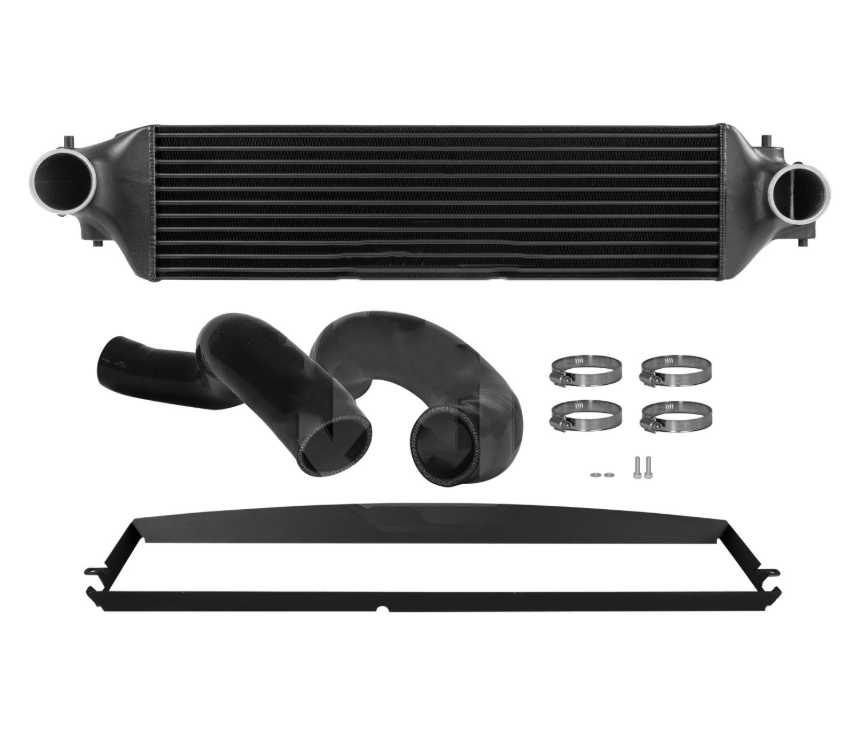

• 1 intercooler
• 1 air baffle
• 2 silicone hoses (black)
• 1 mounting material
• 1 installation instruction
• 1 tüv certification

• V = 15,4 L / 939,76Inch³
• A = 1226 cm²/ 190 Inch²
